What is the difference between a wall footing and a footing?
John Parker What is the difference between a footing and foundation?
The footing is what's actually in contact with the ground, while the foundation is the structure that transfers the load to the earth.
What is a footing for a wall?

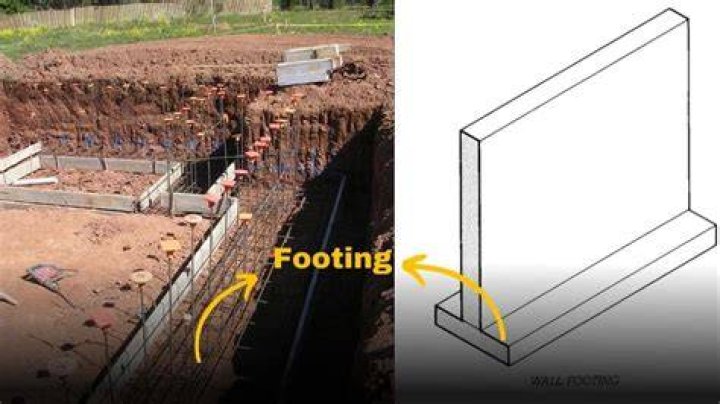

A wall footing or strip footing is a continuous strip of concrete that serves to spread the weight of a load-bearing wall across an area of soil. It is the component of a shallow foundation.
Is wall footing and strip footing same?
Strip footing is a component of shallow foundation which distributes the weight of a load-bearing wall across the area of the ground. It is also known as wall footing. Strip footing is commonly used as foundations of load-bearing walls where the soil is of good bearing capacity.
What are the 4 types of footings?
There are four examples of shallow foundations that we'll cover mat, individual footing, combined footing and stem wall. Each has a unique structure and various use cases.
Difference Between Footing and Foundation in Building Construction
What are different type of wall footings?
The different types of footings used in construction are described below:
- Continuous Wall Footing. The footing which supports a long masonry or RCC wall is known as a continuous footing. ...
- Isolated Footing. ...
- Combined Footing. ...
- Strip Footing. ...
- Strap Footing. ...
- Raft Footing. ...
- Pile Footing.
Is a retaining wall a footing?
No, the footing is not a structural component of the wall, and acts as a leveling pad for the dry stacked retaining wall blocks. This is one of the benefits of dry stacked gravity retaining wall blocks making them faster and more cost effective to use.
Why is wall footing necessary?
The footings distribute the weight from the walls and the rest of the home making it solid and strong. If the weight is unevenly distributed or unsupported then you may begin to encounter issues common with a failing foundation such as sagging walls, cracked floors and stem walls, and other related problems.
What are wall foundations?
A foundation wall is a wall which rests on the footers of the foundation, and provides support for the weight of a house.
Why is wall footing important?
The footing transmits the load into the soil. The lower the bearing capacity of the soil, the wider the footing needs to be. If the soil is very strong, the footing isn't even strictly necessary -- just the soil under the wall would be enough to hold the building up.
How deep is a wall footing?
All footings should be a minimum of 150mm (6") in depth, with the bottom 350 - 400mm (14-16") below ground level on most soils. For clay soil however, thicker and deeper footings should be used.
How thick should a wall footing be?
The foundation should be cast not less than 1' 6" to 2' 0" below ground, its thickness not less than 9" and its width not less than 24" or a minimum of three times the width of the wall immediately supported by it.
What comes first footings or foundations?
In summary:
- T-shaped foundations are used in areas where the ground freezes.
- First, the footing is placed.
- Second, the walls are constructed and poured.
- Lastly, the slab is placed.
Do all foundations have footings?
What are Footings? Under every house is a foundation, and under most foundations are footings. Most of the time we take footings for granted, and usually we can: For typical soils, a common 16- or 20-inch-wide footing can more than handle the relatively light weight of an ordinary house.
What is considered a footing?
A footing is a part of the foundation construction for a building, creating an attachment point between the foundation and the soil. Footings consist of concrete material placed into a trench. The role of a footing is to support a building and help prevent settling.
What are the 3 types of foundations?
Foundation types vary, but likely your house or home's addition does or will have one of these three foundations: full or daylight basement, crawlspace, or concrete slab-on-grade.
Is a wall considered a foundation?
A foundation transfers the load of a structure to the earth and resists loads imposed by the earth. A foundation in residential construction may consist of a footing, wall, slab, pier, pile, or a combination of these elements.
Does a stem wall need a footing?
Stem-walls (preferred by Cogdill Builders of Florida)
The structures require three components for their construction – a poured slab, a foundation wall, and a spread footing.
Where do you put wall footings?
Wall footing runs along the direction of the wall. The size of the footing and the thickness of the foundation wall are specified on the basis of the type of soil at the site. The width of the wall footing is generally 2-3 times the width of the wall.
What is the strongest foundation for a house?
Foundations are generally made of sturdy materials that can keep the home standing even during earthquakes and cyclones. As a result, they are often built of concrete, the strongest building material. Concrete foundations are either poured into place or placed in excavated holes.
How deep should a footing be?
Depth of Footings
Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected.
Do you need footings for a garden wall?
You should always build a garden wall on a solid foundation of a trench filled with concrete. This is called the 'footing', and if it's substantial and accurate, your wall will last longer and be easier to build.
How deep should footings be for a small retaining wall?
Retaining wall foundation depth should be 300mm if the soil is firm and well-drained, or 450mm if less firm and unstable.
What are the two 2 types of walls?
Generally, the walls are differentiated as a two types outer-walls and inner-walls. Outer-walls gives an enclosure to the house for shelter and inner-walls helps to partition the enclosure into the required number of rooms.
