Is water pressure the same as flow rate?
Rachel Hickman Pressure, Flow & Your Plumbing System
When you get right down to it, the easiest way to describe the difference between water flow and water pressure is that water flow is how much water comes out of your pipes while water pressure is how hard it comes out of your pipes.How is flow rate related to pressure?
This relationship can be expressed by the equation F = Q/t. Fluid flow requires a pressure gradient (ΔP) between two points such that flow is directly proportional to the pressure differential. Higher pressure differences will drive greater flow rates. The pressure gradient establishes the direction of flow.
What is a good flow rate for water pressure?
What is the normal water flow rate for a house? The ideal water pressure for an average-sized house is 10-15 litres per minute. Any less than 10 litres per minute and you have low water pressure. Any higher than 15 litres per minute and your water pressure is too high and could be causing damage to your pipes.
Does more flow mean pressure?
The relationship between pressure and flow in the pipeline is proportional. That is, the greater the pressure, the greater the flow rate. The flow rate is equal to the velocity multiplied by the section.
How do you calculate water flow from pressure?

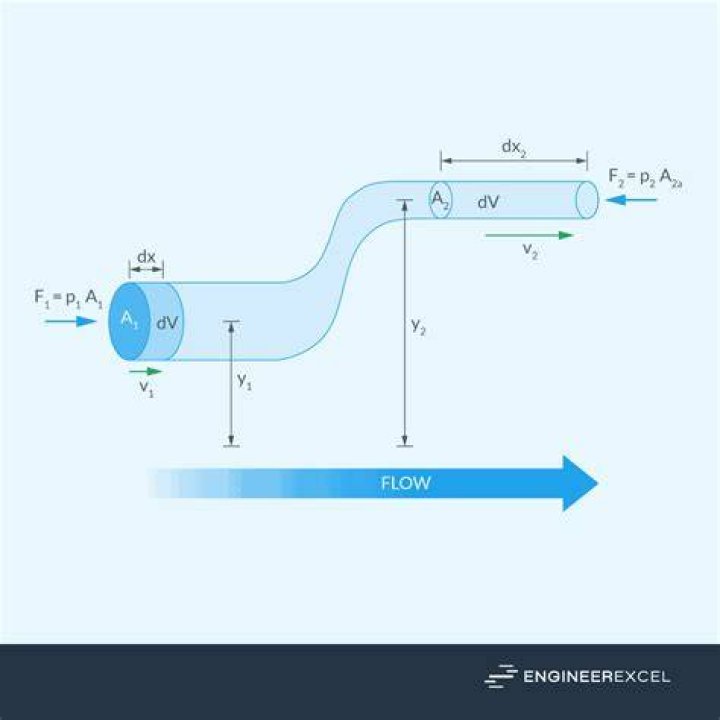

The Bernoulli equation states that velocity is determined by calculating difference in pressure between two points, multiplying by 2, dividing by the density of water and then taking the square root. You then get the flow rate by multiplying the velocity by the cross-sectional area of the pipe.
The difference between water pressure and water flow | How Pipe Size Affects Water Flow
Can you convert pressure to flow rate?
Since PSI is a measure of pressure and GPM is a measure of flow rate, we can not directly convert one into another. However, we can use Bernoulli's equation for an incompressible fluid to calculate the flow rate in GPM if certain other variables are known.
What is water flow rate?
Your water flow rate, also known as your gallons per minute or GPM, is the measurement of how many gallons of water could potentially come out of your kitchen faucet or bathtub per minute. Your flow rate depends on a mix of factors, but the first thing is your household size.
Does higher flow rate affect pressure?
Bernoulli's equation states mathematically that if a fluid is flowing through a tube and the tube diameter decreases, then the velocity of the fluid increases, the pressure decreases, and the mass flow (and therefore volumetric flow) remains constant so long as the air density is constant.
Does PSI affect flow rate?
Increasing the pressure in the system increases the flow rate. In Fig. 21-3, the flow rate in a 2-inch pipe increases by 100 gpm when the pressure is in- creased from 20 psi to 50 psi. Using a smaller pipe size does not increase the flow.
How do you calculate water flow rate?
To calculate the water flow (in m3) multiply the average water velocity (in m/s) by the average width (in m) and by the average depth (in m). Water flow = 0.425 m/s x 1 m x 0.6 m = 0.255 m3/s. Note: remember that 1 m3 = 1 000 l so multiply by this to convert water flow measurements to litres per second (l/s).
Does water pressure affect GPM?
Simply stated the flow rate of water (gallons per minute) is the amount of water a line delivers in a specified amount of time. The flow rate is based upon some key factors. Two of the key factors are: The flow rate of water from a pipe (gpm) is based upon the pressure at the source that supplies the pipe.
What is the average household water flow rate?
The average household needs 100 to 120 gallons per person per day, and a flow rate of about 6 to 12 gallons per minute.
Is 70 psi too high for water pressure?
How High Is Too High? The ideal water pressure level is between 50-70 PSI. If your water pressure goes above 70 PSI (even occasionally), you should install a pressure regulator to your main water line.
Does flow rate affect pressure shower head?
Based on data like this, states like California, Colorado and New York have recently changed the Maximum Flow Rate from 2.5 GPM to 1.8 GPM! That's a 28% cut in Flow Rate, which leads to less pressure from your Shower Head. Yup, it's the law.
What is water pressure?
What is water pressure? Pressure is the force that pushes water through pipes. Water pressure determines the flow of water from the tap. The amount of pressure at your tap can depend on how high the service reservoir or water tower is above your home, or on how much water other customers are using.
What is the normal mains water pressure?
Normal water pressure is generally between 40 and 60 PSI but most homeowners prefer to have it set somewhere in the middle around 50 PSI.
What is the maximum safe water pressure for a house?
The maximum recommended water pressure for homes is 80 psi; any pressurization exceeding this amount will result in thousands of wasted gallons of water each month.
How much PSI should a shower have?
If your water pressure seems low, the first step should be to test how much pressure you're actually getting from the shower head. A typical home's water pressure should be somewhere between 45 to 55 psi (pounds per square inch).
How many gallons per minute is normal water pressure?
A toilet will normally use about 2-3 gallons per minute (gpm), a shower from 1.5 to 3.0 gpm, a bathroom or kitchen faucet from 2-3 gpm, a dishwasher from 2-4 gpm, and a washing machine from 3-5 gpm. When you start running more than one fixture (sink/dishwasher/toilet/etc.)
How do I check my water pressure?
How to Calculate Water Pressure?
- Take the height of the outlet from the base.
- The formula to compute the water pressure is P = ρ * g * h.
- Where ρ is the density of water, g is the gravitational constant and h is the height.
- The constant value of water density is 997 kg/m³, gravitational constant is 9.81 m s-2.
How can I check my water pressure without a gauge?
How To Test Water Pressure Without a Pressure Gauge
- Turn on the sink and shower in the bathroom.
- Flush the toilet once.
- Watch the flow of water in the shower.
- If pressure visibly drops when the toilet is filling back up, then there is a good chance that the water pressure in the home is compromised.
How do I increase water pressure in my home?
Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.
Is 40 psi good water pressure?
Normal water pressure range
If your water pressure is under 40 psi, it's considered low. A psi between 20-30 is considered very low, and under the minimum water pressure required by most building codes. On the other side of the spectrum, water pressure above 80 psi is considered too high.
What is a good flow rate for a tub faucet?
What is a good flow rate for a bathroom faucet? A good faucet flow rate is around 1.5 GPM or even 0.5 GPM (according to WaterSense standard). What is the average flow rate of a bathtub faucet? The average flow rate of a bathtub faucet is approximately 4 to 7 GPM.
What is the best flow rate for a shower?
Also known as "flow rate", GPM is a measure of how many gallons of water flow out of your shower head each minute. Since 1992, a maximum of 2.5 GPM is the federally mandated flow rate for new shower heads. This means no more than 2.5 gallons of water should flow out each minute.
