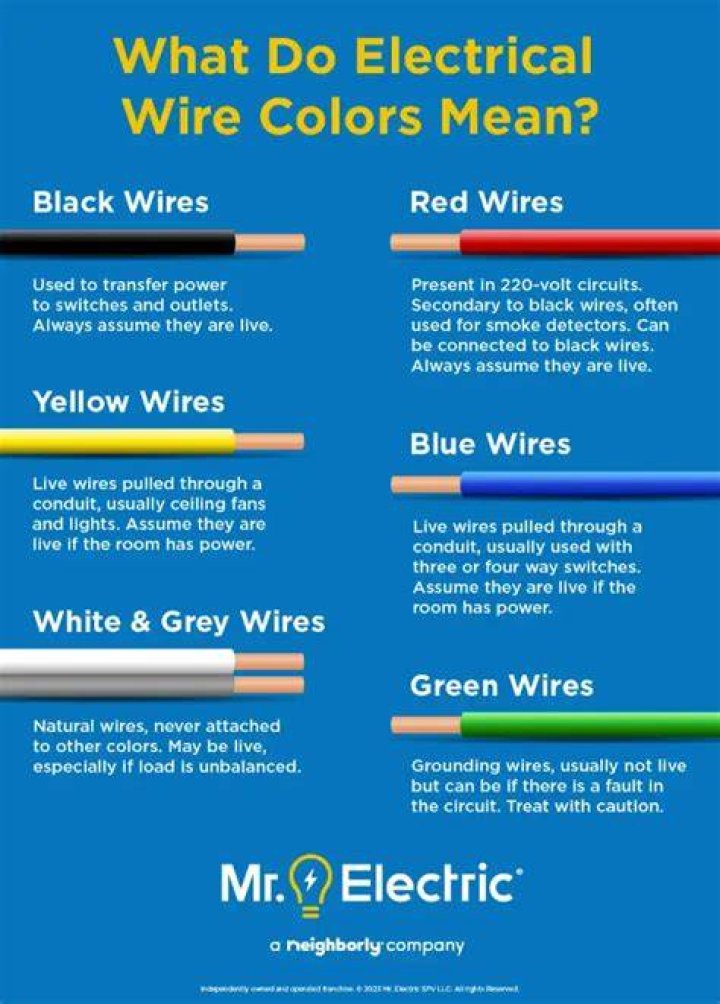

What do the color of wires mean?

Black wires are hot wires that run to the electrical outlet from the switch. Red wires are hot wires common in a 240-volt outlet or when a wall switch controls the outlet. Blue and yellow wires are hot wires for ceiling fans and three- or four-way switches. White or gray electrical wires are neutral wires.

Do different Coloured wires do different things?

Each color serves a different purpose and you should be aware that all wires, no matter their function or color, can carry a current at some point so they should be handled carefully.

How do you know what color wire to use?

The color code for AC power wiring is similar to the code used in the United States:

1. Phase 1 - Red.
2. Phase 2 - Black.
3. Phase 3 - Blue.
4. Neutral - White.
5. Ground - Green with Yellow Stripe.

Does it matter which wire is black or white?

Here's a rundown of electrical wires: The black wire is the "hot" wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the "neutral" wire, it takes any unused electricity and current and sends it back to the breaker panel.

Ask an Electrician - Do Wire Colours Matter?

What happens if black and white wires are reversed?

So, what happens with reversed polarity? In reversed polarity, both the hot wire and neutral wire get switched, causing the electric current to flow backward, entering the appliance through the neutral terminal instead of the hot terminal, which energizes the appliance even when off.

What happens if you connect wrong wires?

But here's the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work, but the polarity will be backward. When this happens, a lamp, for example, will have its bulb socket sleeve energized rather than the little tab inside the socket.

Can I connect black wire to red wire?

You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

What does black wire mean?

Black: Black wires are neutral wires and the wire is connected to a neutral bus bar inside the electrical panel. The bus bar is a conductive piece of metal used for the purpose of distribution. The black wire can be connected to another black wire, and as it is neutral, it does carry a charge.

Is a black wire live?

Black. Black wires are “hot” wires, which means they carry a live current from your electrical panel to the destination. They feed electricity to electrical outlets, switches and appliances from the home's main power supply.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means. In some cases, there will be small writing on the wiring case.

How do you know which wire is positive and which is negative?

If you have a wire where both sides are the same color, which is typically copper, the strand that has a grooved texture is the negative wire. Run your fingers along the wire to determine which side has the ribbing. Feel the other wire which is smooth. This is your positive wire.

Is red or black live?

Black (neutral) Red (live) Green and yellow (earth)

What happens if you switch red and black wires?

If you switch the red and black speaker wires, all that happens is that the drivers push out instead of pulling in (and vice versa).

What color wires go together for a ceiling light?

Black wires always signify the positive, or hot, leg of the current, while white wires signify negative, also called neutral or return. Ground wires are either left bare or covered with green insulation. When there is an extra hot wire, it is red. Ceiling fixtures almost always have a black and white wire.

Is the black wire hot?

Hot wire is identified by its black casing. This is the main color of hot wire for most homes. However, other hot wires can red, blue, or yellow, although these colors can indicate a different function besides powering an outlet.

Does red wire go with black or white?

Sheathed cable with a red wire always is accompanied by a black wire, a white wire and a bare wire. Very old homes may have cable that excludes the bare wire.

Can you put 2 black wires together?

This is the typical way to connect a switch. The 2 blacks connected are "power in, power out" to the next switch in the circuit. The pig-tail to the dimmer connected to the two blacks is also typical.

What do I do with the red wire when installing a light?

Red wires are usually used as secondary hot wires. Red wires are also hot and should be clearly marked to avoid the dangers of electrocution. Red wires are commonly used when installing ceiling fans, where the light switch maybe.

What happens if you mix up hot and neutral wires?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it's usually an easy repair. Any $5 electrical tester will alert you to this condition, assuming you have a properly grounded three-prong outlet.

What will happen if live and neutral are reversed?

If your outlet's polarity is reversed, it means that the neutral wire is connected to where the hot wire is supposed to be. This may not sound like a terrible thing, but it is. There is always electricity flowing out of an outlet with reversed polarity, even if an appliance is supposed to be off. Why is it dangerous?

Can wiring a light switch wrong cause a fire?

Usually, a broken or failing light switch isn't a fire hazard itself, but it can overheat if the contacts or the switch wear down. Sometimes a bad light switch can cause other components on the circuit, such as a bulb, to become a fire hazard by causing an intermittent current.

Can Reverse polarity cause a fire?

Yes, if you accidentally reverse the polarity on an electrical outlet, the device you plug in to the receptacle isn't safe and could cause a short circuit, shock, or fire.
