How many plumbing fixtures can share vents?

A horizontal wet vent could have as few as two fixtures or as many as ten fixtures but not more than two fixtures of any type can be connected to the system. Each wet vented fixture drain shall connect independently to the horizontal wet vent.

How many fixtures can share a 2 vent?

The Plumbing Code states that a vent can handle 24 fixture units. A bathroom sink of 1.0 F.U., a bathtub of 2.0 F.U., and a shower of 2.0 F.U.

Does each fixture need its own vent?

Every plumbing fixture must also have an attached vent. Without a vent, negative pressure from water leaving the system can cause a siphon which empties the trap. The top of stacks must be vented too, via a stack vent, which is sometimes called a stink pipe.

How many plumbing vents can be tied together?

You can usually tie up to eight fixtures to a single stack, but local codes differ, so it's a good idea to check.

How Many Bathrooms With Toilets Can You Have In Your House - Plumbing Drain Pipe Size Matters

Can 2 toilets share a vent?

The waste lines can usually be tied into the same stack if the house has more than one toilet. They may need their own stack if they are on opposite sides. Two vent openings on the roof are needed since the stacks must be vented.

Can a toilet and shower share the same vent?

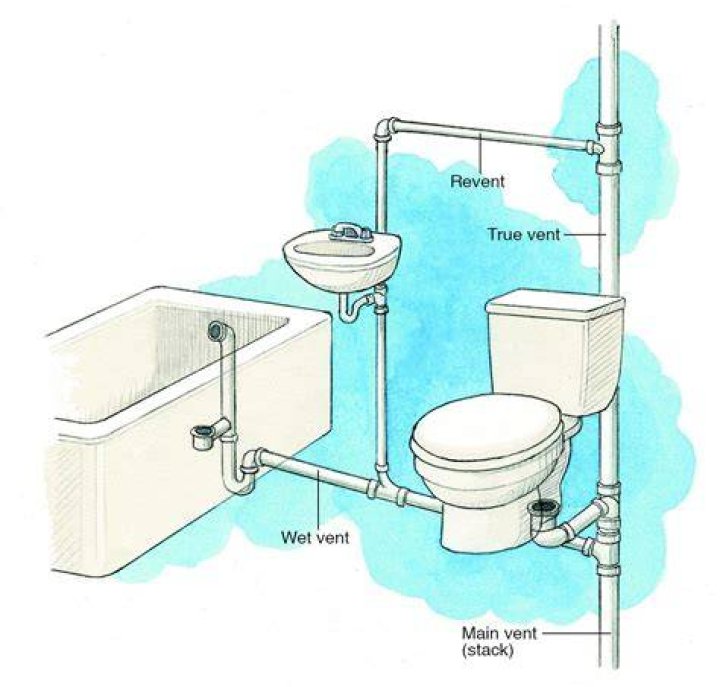

So yes the shower can also be vented by the wet vent along with the toilet. There is one major stipulation when wet venting multiple fixtures when a toilet is one of them: the toilet must be the last fixture connected to the wet vent.

Can a tub and shower share a vent?

Yes, they will both be using the same drain pipe at somepoint inside or outside of your house. But the the pipes must join well below the level of both items or the pipe must be large enough for the combined flow, otherwise when you put water down one of them, it will flow out of the other!

Can a sink and shower share a vent?

You can put the sink drain into the shower drain. 2. If the vent is less than 5 feet from the other fixture, they can share it.

Does each bathroom fixture need its own vent?

No bathroom plumbing system is complete without ventilation. When you flush the commode or drain the tub, wastewater pushes the existing air in the pipes and can form a water lock if additional air does alleviate the vacuum effect.

How many fixtures can be on a 3 inch vent?

A 3-inch (76 mm) soil stack with a stack vent serving as the required vent extension to the outdoors, connecting to a 3-inch (76 mm) building drain, must have at least a 1½-inch (38 mm) stack vent [maximum of 102 fixture units served and a maximum 25-foot (7620 mm) developed length] in accordance with Section 906.1 and ...

How many plumbing vents should a house have?

At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.

Does each sink need a vent?

Every sink needs a sink vent. A plumbing fixture like a sink can not function properly without a sink vent.

Can two sinks share the same vent?

In most cases, you can easily adapt the supply and drain pipes to accommodate two sinks, using tee fittings, special valves, extension pipes and hoses. You may have to vent each sink separately, though, depending on your local plumbing codes.

How do cheater vents work?

A cheater vent (or air admittance valve) is a vent that comes off the fixture -- for example, a sink in a new powder room -- and is buried in the wall. (You can usually hear them sucking in air and gurgling behind the wall when the fixture drains.)

What happens if you don't vent a toilet?

Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.

Does a washing machine drain need a vent?

All plumbing fixtures—including washing machines—must be vented. Improperly vented drains can be sluggish and noisy, and can emit hazardous fumes. Properly vented drains allow the P-trap to do its job: prevent sewer gases from escaping into your home.

How many fixtures can be on a wet vent?

A dry vent system only transports air. No water is carried. In other words, wet vents may vent one fixture and drain another, whereas dry vents usually just vent air from one fixture at a time.

How far can vent be from shower drain?

The maximum distance from a shower trap arm to a vent is usually 5 feet, though some municipalities may allow up to 8 feet.

How far away can a vent be from a toilet?

According to the UPC, the distance between your trap and the vent should be no more than 6 feet. In other words, for the vent to work properly, it needs to feed into the drain line within 6 feet of the trapways that connect to it.

Do plumbing vents have to go through the roof?

It does not have to go through the roof. From the plumbing code (I have the 2003 edition), P3103: It must not be less than 4 feet directly beneath a door, openable window or other air intake of the building or adjacent building.

How far can a vent be from a fixture?

The only vertical pipe of a combination drain and vent system shall be the connection between the fixture drain and the horizontal combination drain and vent pipe. The maximum vertical distance shall be 8 feet (2438 mm). 912.2.
