Can a capacitor electrocute you?

First, it is not the capacitor that can harm you, but the voltage and charge stored in the capacitor. So all capacitors are safe when uncharged, which is what they are when you buy them. To do harm to your body, the voltage across the capacitor's terminals must be high enough to cause a harmful effect on you.

What happens if a capacitor Pops?

Voltages with reverse polarity, or voltage or ripple current higher than specified can destroy the dielectric and the capacitor. The destruction of electrolytic capacitors can have catastrophic consequences such as a fire or an explosion.

Can you touch the top of a capacitor?

Every tutorial on how to safely handle a capacitor tells you to absolutely avoid touching the capacitors leads, and to grab a capacitor by its insulated sides until you can confirm that the capacitor is properly discharged.

What are the dangers of capacitors?

Another hazard exists when a capacitor is subjected to high currents that may cause heating and explosion. Capacitors may be used to store large amounts of energy. An internal failure of one capacitor in a bank frequently results in an explosion when all other capacitors in the bank discharge into the fault.

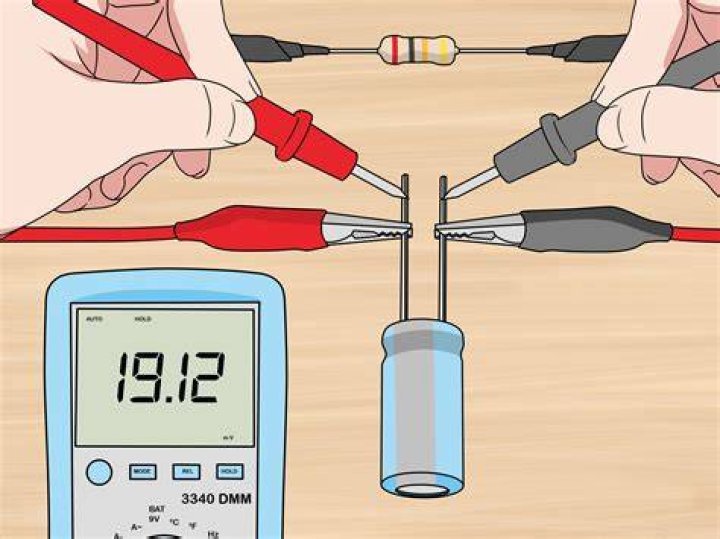

Capacitor Safety - How to Discharge Capacitors Safely

How many volts does a capacitor hold?

Maximum Voltage – Every capacitor has a maximum voltage that it can handle. Otherwise, it will explode! You'll find max voltages anywhere from 1.5V to 100V. Equivalent Series Resistance (ESR) – Like any other physical material, the terminals on a capacitor have a very tiny amount of resistance.

How do you handle a capacitor safely?

Touch the red, or positive, tip of the discharge pen to the other lead, the capacitor's anode. Do NOT connect the positive and negative terminals of the capacitor together with standard wire, screwdrivers or wrenches as this will damage the capacitor and could cause bodily harm to the user.

Is a capacitor a battery?

A battery is an electronic device that converts chemical energy into electrical energy to provide a static electrical charge for power. Whereas a capacitor is an electronic component that stores electrostatic energy in an electric field.

How long does a capacitor take to discharge?

A fully charged capacitor discharges to 63% of its voltage after one time period. After 5 time periods, a capacitor discharges up to near 0% of all the voltage that it once had. Therefore, it is safe to say that the time it takes for a capacitor to discharge is 5 time constants.

Can a capacitor explode?

If a high voltage greater than rated is applied across capacitor, its dielectric strength will break down and eventually capacitor will explode. # Electrolytic capacitors fail due to leakage or vaporization of the electrolyte inside. This can be caused due to heating in operation.

What does a blown capacitor smell like?

I have heard that blown caps smell like fish or cat pee. I do know for sure, but I do know that SWMBO has been pissed when I have popped a cap in the past. That's good enough for me. The smell is truly unique and unforgettable.

Can capacitors make noise?

Capacitor Squeal is actually the noise heard when a capacitor is about to fail. Essentially it's where gas is escaping through tiny holes in the capacitor and makes a “whistle” sound.

Do capacitors have static electricity?

So as a summary: the theory of static electricity all comes down to capacitors connected together, that are charged to diferent voltage potentials at different capacitance values leading to the different charges.

Do capacitors store voltage or current?

stored in a capacitor is electrostatic potential energy and is thus related to the charge Q and voltage V between the capacitor plates. A charged capacitor stores energy in the electrical field between its plates.

How long can a capacitor hold a charge?

Some of these circuits could be charged in less than 20 seconds and hold the charge for up to 40 minutes, while having relatively large capacitances of up to 100 milliFarads (mF).

Do phones have capacitors?

Types of ceramic capacitors

A mobile phone has about 300 to 400, a smartphone about 400 to 500, and a notebook computer or tablet device about 700 to 800 of these capacitors, which contribute significantly to smaller dimensions and lower weight of electronic equipment.

Can I open a capacitor?

It's often safe to discharge a capacitor using a common insulated screwdriver; however, it is usually a good idea to put together a capacitor discharge tool and use that for electronics with larger capacitors such as household appliances.

What liquid is in capacitors?

Various liquid electrolytes are used in electrolytic capacitors today. Electrolytes containing ethylene glycol (EG) or boric acid are used mainly in medium to high-voltage electrolytic capacitors at temperatures of up to 85°C.

Can you scrap capacitors?

You should be able to find a metal recycler in your area that accepts capacitors. Not all metal recyclers will take capacitors, but those that do are generally set up to check for oil contamination. There are also many household items that use capacitors that don't contain oil.

Are capacitors AC or DC?

Capacitor comes in different shapes and their value is measured in farad (F). Capacitors are used in both AC and DC systems (We will discuss it below).

What happens if you short a capacitor?

Short circuit of a charged capacitor entails a great risk of burning out the electronic component and other circuit elements. It also poses a danger of electrocution and fire. The greater the capacitance and voltage of the capacitor, the greater the damage caused in the event of a short circuit.

Why is it necessary to discharge a capacitor?

A capacitor can be slowly charged to the necessary voltage and then discharged quickly to provide the energy needed. It is even possible to charge several capacitors to a certain voltage and then discharge them in such a way as to get more voltage (but not more energy) out of the system than was put in.
